Fast and rugged
Leaded NTC thermistors are known for fast time response and dependable performance from -50 °C to 150 °C.
Products
Leaded NTC Thermistors

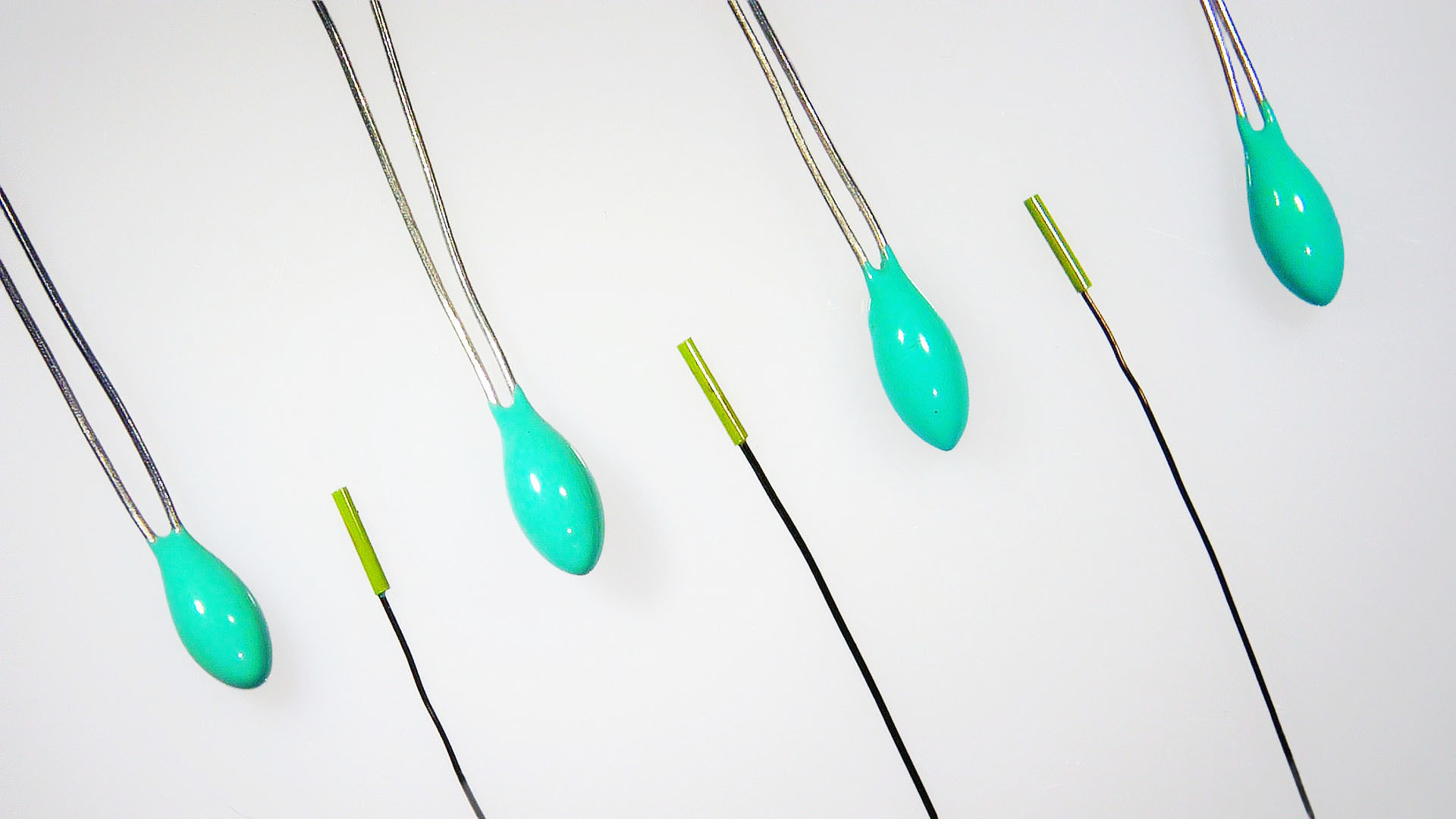

North Star Sensors leaded NTC thermistors are available in a variety of R/T curves, R25 values, temperature tolerances, and lead configurations.
Multiple package sizes
Micro, mini, rigid probe-ready, and standard thermistor styles are available across several lead constructions.
Cost-effective sensing
They are among the most versatile and economical temperature sensing options for production designs.
Datasheets (17)
All datasheets| 1AE | 30 AWG tin-plated copper leads, 2 in | |
|---|---|---|
| 1BE | 28 AWG tin-plated copper leads, 2 in | |
| 1CE | 32 AWG tin-plated copper leads, 3 in | |
| 1DE | 32 AWG tin-plated copper-nickel Alloy 180 leads, 3 in | |
| 1EE | 30 AWG tin-plated nickel leads, 2 in | |
| 1FE | 32 AWG tin-plated copper-nickel Alloy 180 leads, 3 in | |
| 1GE | 30 AWG tin-plated nickel-iron Alloy 52 leads, 2 in |
| 2AE | Teflon-insulated 30 AWG silver-plated copper leads, 3 in | |
|---|---|---|
| 2BE | Kynar-insulated 30 AWG silver-plated copper leads, 3 in | |
| 2DE | Twisted pair Kynar-insulated 28 AWG silver-plated copper leads, 3 in | |
| 2EE | Twisted pair Kynar-insulated 28 AWG silver-plated copper leads, 6 in | |
| 2FE | Kynar-insulated 28 AWG silver-plated copper leads, 3 in | |
| 2GE | Kynar-insulated 28 AWG silver-plated copper leads, 6 in | |
| 2HE | Kynar-insulated 30 AWG silver-plated copper leads, 6 in |
| 3XT | Brown polyesterimide insulated 38 AWG leads, parallel-bonded, multiple lengths | |
|---|---|---|
| 4XT | Brown polyesterimide insulated 38 AWG leads, parallel-bonded, multiple lengths | |
| 5XT | Red polyurethane nylon insulated 32 AWG leads, twisted pair, multiple lengths |
North Star Sensors leaded NTC thermistors are available in a variety of R/T curves, R25 values, temperature tolerances, and lead configurations. Leaded NTC thermistors are noted for their fast time response and ruggedness. They are the one of the most cost-effective and versatile temperature sensor available for the temperature range of -50 °C to 150 °C.
Leaded NTC thermistors are available with insulated or uninsulated leads, a range of coatings and encapsulations, and a wide spread of R25 values from 100 Ω to 100,000 Ω. Epoxy coatings and epoxy / polymer tube constructions are common because they balance environmental protection with response time.
If you need help choosing the right family, North Star Sensors can help you balance dimensions, lead style, tolerance, and curve selection for your application.
Key Details
- Standard, mini, and micro size thermistors available.
- Nine industry standard R/T Curves available
- Uninsulated and insulated leads are available.
- Standard lead lengths from 3 inches to 12 inches.
- Epoxy coating or an epoxy/polymer tube are the most popular encapsulations. Depending on a number of factors, the final maximum O.D. of the leaded NTC thermistor will typically range from 0.110 inches to 0.023 inches.
- R25 values range from 100 Ω to 100,000 Ω
- Point-matched tolerances from ±10%, ±5% to ±2%
- Standard interchangeable temperature ranges from -20 °C to 50 °C, 0 °C to 70 °C, and 0 °C to 100 °C.
- Interchangeable temperature tolerances from ±1.0 °C to ±0.05 °C are available
Contact us for custom NTC thermistor requirements.
Uninsulated Leads

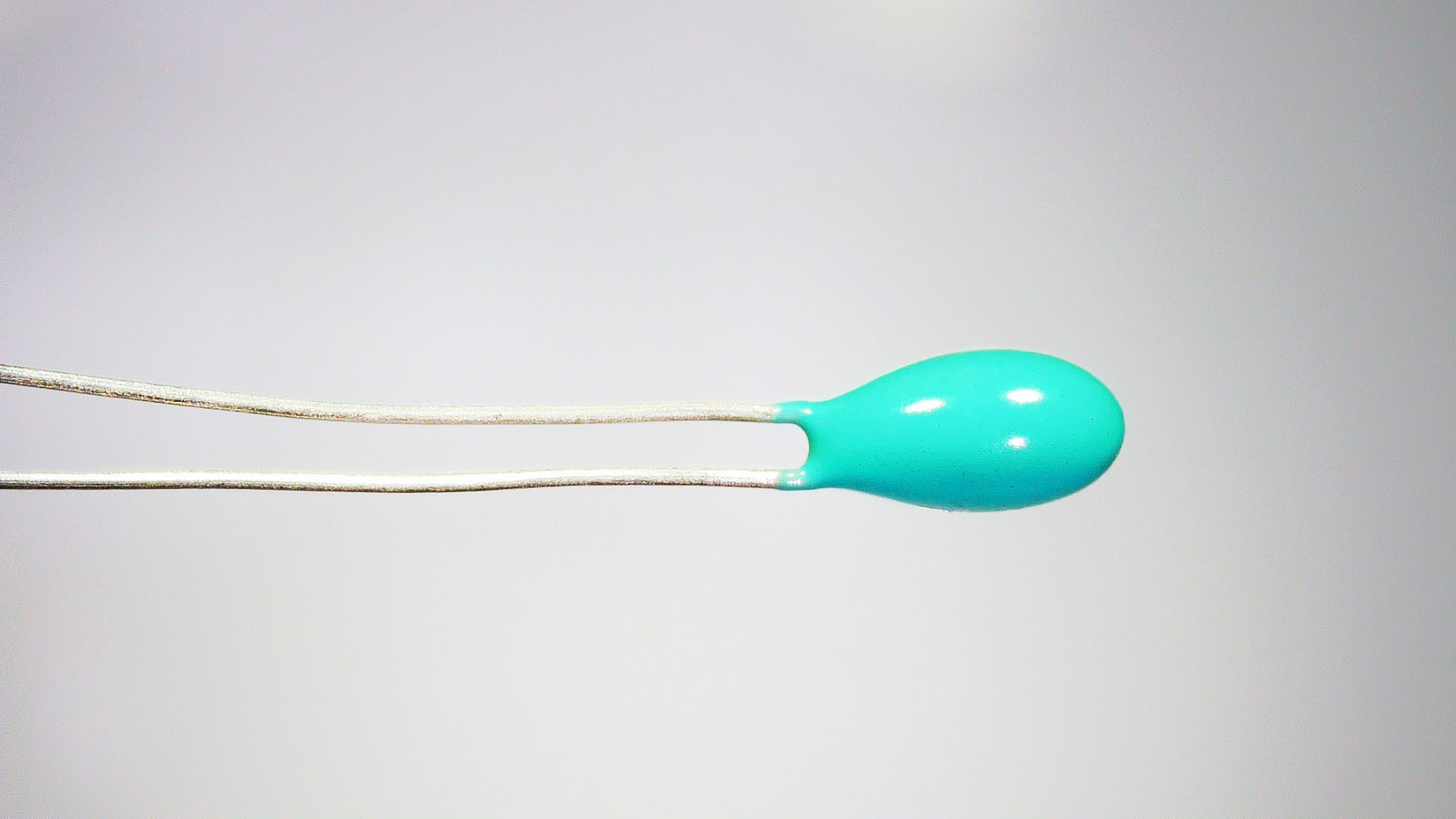

NTC thermistors with uninsulated leads are one of the industry's most typical and most versatile NTC thermistor configurations. They are suitable for mounting on PC boards or potting inside temperature housings. Their small size, low cost, ruggedness, and sensitivity to changes in temperature make them the ideal choice for applications in the range of -50 °C to +150 °C.
Here are a few examples of uninsulated leaded NTC thermistors:
| Part Number | 25 °C Ω | Curve | Electrical Tolerance | Lead | Thermistor Coating | Max OD |
|---|---|---|---|---|---|---|
| 1AE103R44T1A | 10,000 Ω | 44 | 0.1 °C from 0 °C to 70 °C |
30 AWG, 2" tin-plated copper |
Epoxy | 0.095" |
| 1CE303R43T2A | 30,000 Ω | 43 | 0.2 °C from 0 °C to 70 °C |
32 AWG, 3" tin-plated copper |
Epoxy | 0.095" |
| 1BE101R38P2A | 100 Ω | 38 | 2% resistance at 25 °C |
28 AWG, 2" tin-plated copper |
Epoxy | 0.150" |
Visit page How to Select an NTC Thermistor for more explanation on part number codes.
Insulated Leads

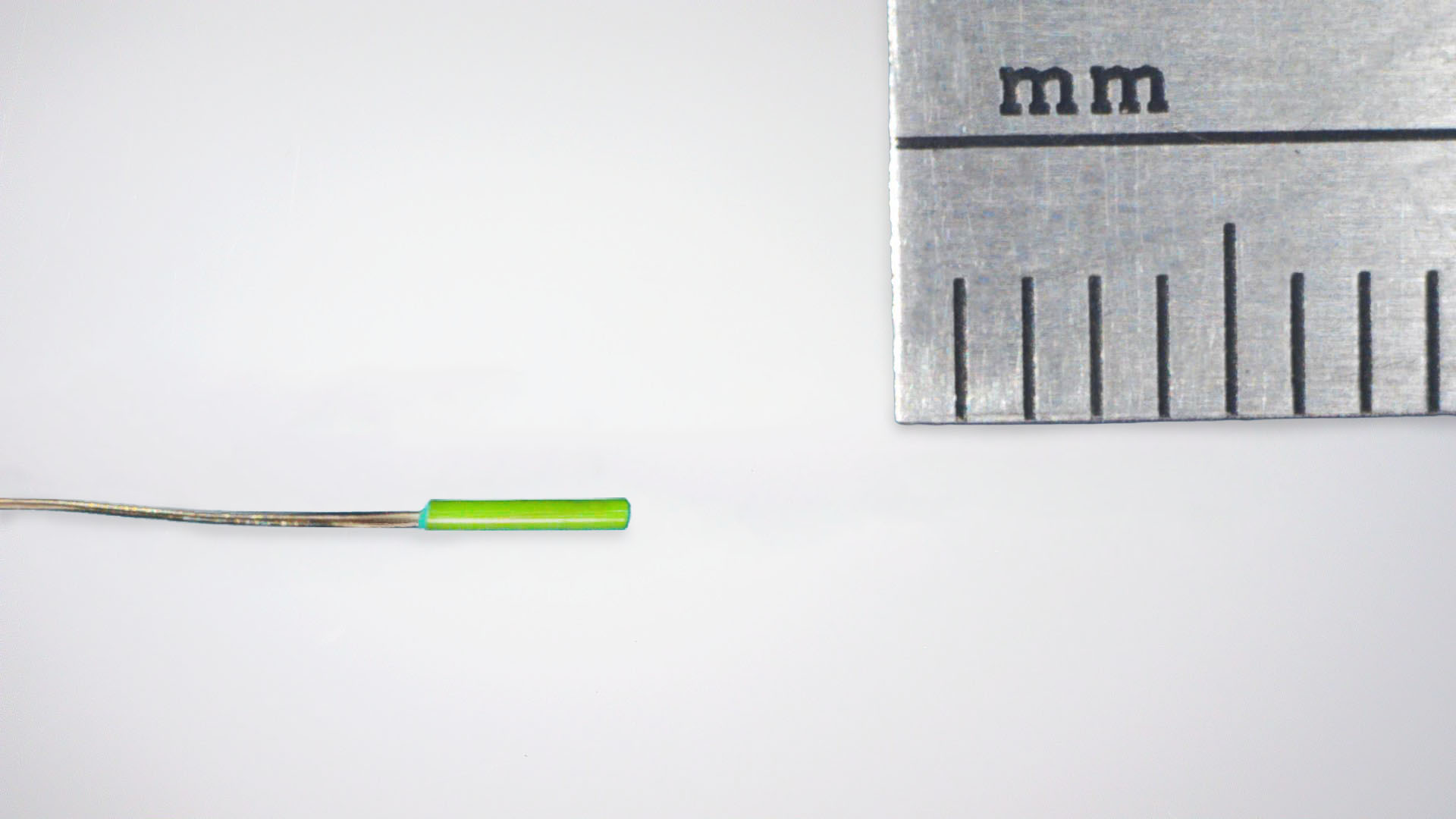

NTC thermistors with insulated leads are an excellent option for simplifying subsequent assembly steps using NTC thermistors as components. This can lower the assembly costs while also reducing potential points of failure such as unwanted electrical contact to a housing. Additionally, using insulated leads may increase the assembly's overall ruggedness and ability to withstand various environmental conditions.
Here are a few examples of insulated, leaded NTC thermistors:
| Part Number | 25 °C Ω | Curve | Electrical Tolerance | Insulated Lead | Thermistor Coating | Max OD |
|---|---|---|---|---|---|---|
| 2AE103R44T1A | 10,000 Ω | 44 | 0.1 °C from 0 °C to 70 °C |
30 AWG, silver-plated copper, Teflon insulation, 3" L |
Epoxy | 0.095" |
| 3AT103R44T2A | 10,000 Ω | 44 | 0.2 °C from 0 °C to 70 °C |
38 AWG Ni bifilar, heavy polyesterimide insulation, 3" L |
Epoxy in polyimide tube |
0.023" |
| 2DE303R43T2A | 30,000 Ω | 43 | 0.2 °C from 0 °C to 70 °C |
28 AWG, silver-plated copper, Kynar insulation, twisted pair, 3" L |
Epoxy | 0.095" |
| 3CT303R44T1A | 30,000 Ω | 44 | 0.1 °C from 0 °C to 70 °C |
38 AWG Ni bifilar, heavy polyesterimide insulation, 3" L |
Epoxy in polyimide tube |
0.037" |
Visit page How to Select an NTC Thermistor for more explanation on part number codes.
